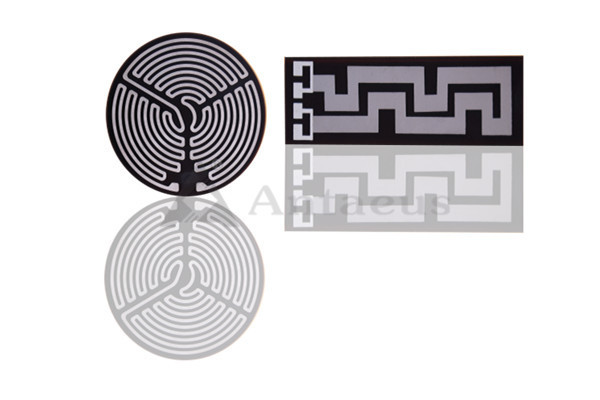

Hoge hardheids Ceramische Elektrische Isolatie

  • High hardness Ceramic Electric Insulators
Plaats van herkomst Hunan, China
Merknaam Antaeus
Certificering /
Modelnummer Advertentie-D026
Min. bestelaantal Onderhandeling
Prijs negotiable
Verpakking Details Binnen vacuüm verpakking, buitenkarton.
Levertijd 15-45 dagen
Betalingscondities T/T of Onderhandeling
Levering vermogen Volledige Levering

Neem contact met mij op voor gratis monsters en coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skypen: sales10@aixton.com

Als u zich zorgen maakt, bieden wij 24 uur per dag online hulp.

x
Productdetails
Productnaam Elektronische Ceramische Componenten/Elektronische Keramiek AL2O3 Inhoud 90% - 99%
Trek 30 Kpsi - 32 Kpsi Flexural 55 Kpsi - 60 Kpsi
Samenpersend 300 Kpsi - 330 Kpsi Dichtheid 3.7 g/cc - 3,92 g/cc
Hardheid 13.8 HV, Gpa - 18 HV, Gpa Warmtegeleidingsvermogen 25 W (m K) - 32 W (m K)
C.O.T.E 75 In/In°C (x10^7) - 78 In/In°C (x10^7) Het werk Temperatuur 1500 °C - 1750 °C
Diëlektrische Constante 9.5 - 9.8 Volumeweerstandsvermogen >10^14 ohm-Cm
Diëlektrische Sterkte 16 KV/mm - 20 KV/mm
Markeren

Hoge Hardheids Ceramische Elektrische Isolatie

,

IATF16949 ceramische elektrische isolatie

,

Hoge het oxydeisolatie van het Hardheidsaluminium
Laat een bericht achter
Productomschrijving

Electronic Ceramic Components / Ceramic Electronic Parts



1. Description:

MLCC manufacturers tried to replace silver–palladium inner electrodes with nickel electrodes. As nickel is easily oxidized in air at elevated temperatures, MLCCs with nickel inner electrodes should be fired in an atmosphere with a low oxygen partial pressure. However, the problem was that properties of BaTiO3-based dielectrics were easily reduced in such sintering conditions. Figure 3 shows a famous result of Sakabe at Murata Manufact., indicating the possibility to produce BaTiO3 ceramics with anti-reducing properties [2,3].



2. Feature Advantages:

1) High hardness and high density

2) Low thermal conductivity

3) Chemical inertness

4) Good wear resistance

5) High Fracture toughness

6) Good insulation performance

7) High temperature resistance

8) A variety of specifications is available

9) Satisfy various technical requests

10) Lower medium spoilage

11) Stiffness texture

12) Chemical inertness

13) Good wear resistance

14) High Fracture toughness

15) Good insulation performance



3. Material Features / Properties:

Composite (wt %) 99% 99.5% 99.8%
Color   White or Ivory White or Ivory White or Ivory
Density g/cm 3 3.82 3.9 3.92
Hardness HRA 83 85 85
Flexural Strength Mpa (psi*10 3 ) 375 386 381



4. Technical Parameters:

Technical Parameters of Ceramics
Items Test Conditions Unit or Symbol 99% AL2O3 95% AL2O3 90% AL2O3 Zirconia Steatite Silicon Carbide
Volume Density -- g/cm3 ≥3.70 ≥3.62 ≥3.40 ≥5.90 ≥2.60 ≥3.08
Tightness -- Pa·m³/s ≤1.0×10-11 ≤1.0×10-11 ≤1.0×10-11 - - -
Liquid Permeability -- -- Pass Pass Pass   Pass -
Flexural Strength - MPa ≥300 ≥280 ≥230 ≥1100 ≥120 ≥400
Elastic Modulus - GPa - ≥280 ≥250 ≥220 - 400
Poisson Ratio - 　 - - 0.20～0.25 0.20～0.25 - - -
Thermal Shock Resistance 800℃( Room Temperature) Cycle: 10 times   Pass Pass Pass - - -
Coefficient of Linear Expansion 20℃～100℃ ×10-6 K-1 - - -   ≤8 -
20℃～500℃ ×10-6 K-1 6.5～7.5 6.5～7.5 6.5～7.5 6.5～11.2 - -
20℃～800℃ ×10-6 K-1 6.5～8.0 6.5～8.0 6.3～7.3   - 4
20℃～1200℃ ×10-6 K-1 - 7.0～8.5 - - - -
Coefficient of Thermal Conductivity 20℃ W/(m·k) - - - - - 90～110
1000℃
Dielectric Constant 1MHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - ≤7.5 -
1MHz 50℃ - - 9.0～10 - - - -
10GHz 20℃ - 9.0～10.5 9.0～10 9.0～10 - - -
Volume Resistivity 100℃ Ω·cm ≥1.0×1013 ≥1.0×1013 ≥1.0×1013 - ≥1.0×1012 -
300℃ ≥1.0×1013 ≥1.0×1010 ≥1.0×1013 - - -
500℃ ≥1.0×109 ≥1.0×108 -- - - -
Disruptive Strength D.C kV/mm ≥17 ≥15 ≥15 - ≥20 -
Chemical Durability 1:9HCl mg/c㎡ ≤0.7 ≤7.0 - - - -
10%NaOH mg/c㎡ ≤0.1 ≤0.2 - -- - -
Grain Size - μm - 3~12 - - - -



5. Process Flows:

Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Printing --- Nickel Plating --- Assembing --- Brazing --- Inspecting --- Packing

Hoge hardheids Ceramische Elektrische Isolatie 0



6. Application Fields:

Widely apply for new energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.

Hoge hardheids Ceramische Elektrische Isolatie 1



7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln

Hoge hardheids Ceramische Elektrische Isolatie 2



8. Detection Devices:

Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

Hoge hardheids Ceramische Elektrische Isolatie 3

9.Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery

Hoge hardheids Ceramische Elektrische Isolatie 4

10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

Hoge hardheids Ceramische Elektrische Isolatie 5

11.Shipping and Package:

Hoge hardheids Ceramische Elektrische Isolatie 6

12. Our aimed market :

Hoge hardheids Ceramische Elektrische Isolatie 7

 Notes:Above information only for reference and please contact with us for more details freely when you have any inquiry!
